Welding Fixtures Gallery
-

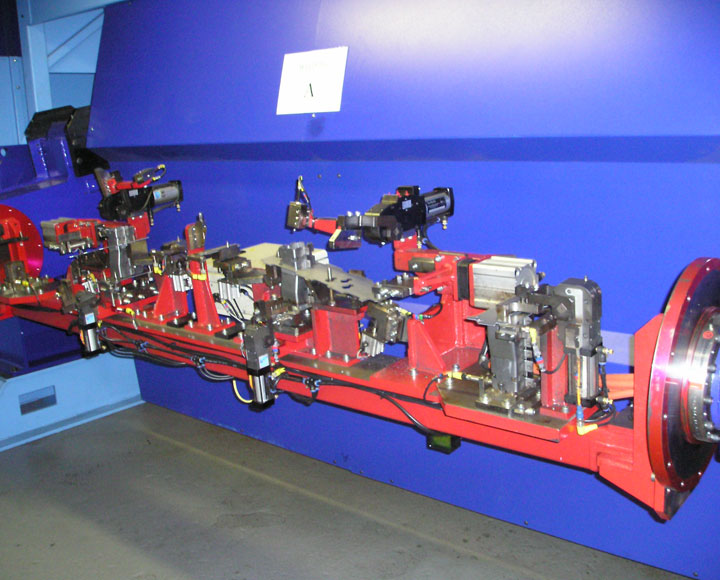

Mig Welding FixtureRange Rover Rear Bumper - Fully automated fixture to weld reinforcements to the main bumper beam, mounted between face plates on a rotary manipulator in a robotic welding cell. -
Mig Welding FixtureLand Rover Rear Bumper - Fully automated fixture to weld Cover plates and Mounting brackets to the main bumper beam, mounted between face plates on a rotary manipulator in a robotic welding cell. -
Mig Welding fixtureLand Rover Rear Bumper - Fully automated fixture to weld Cover plates and Mounting brackets to the main bumper beam, mounted between face plates on a rotary manipulator in a robotic welding cell. -

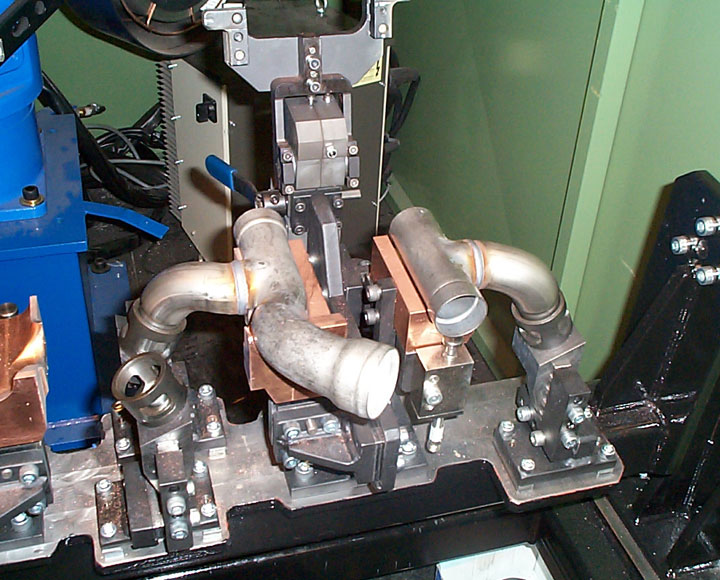

Mig Welding FixtureLand Rover Exhaust Manifold - Fully automated fixture to 1 tag weld the internal components in a robotic welding cell. -

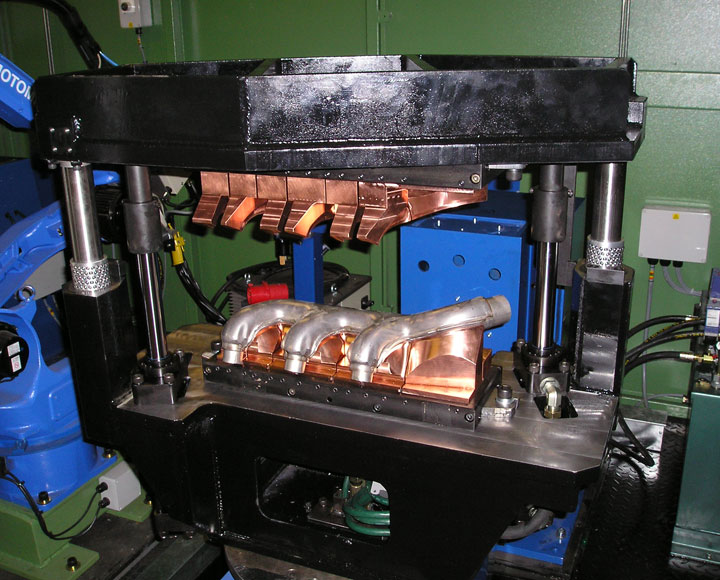

Mig Welding FixtureMig Welding Fixture - Fully automated fixture to Seam weld the outer manifold covers Using a vertical press in a robotic welding cell. -

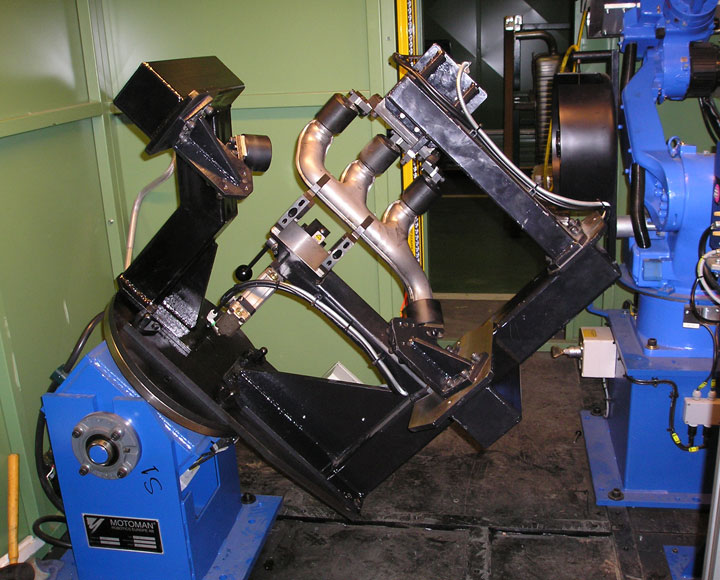

Mig Welding FixtureLand Rover Exhaust Manifold - Fully automated fixture to weld the Mounting Cups to the previous welded assembly in a robotic welding cell. -

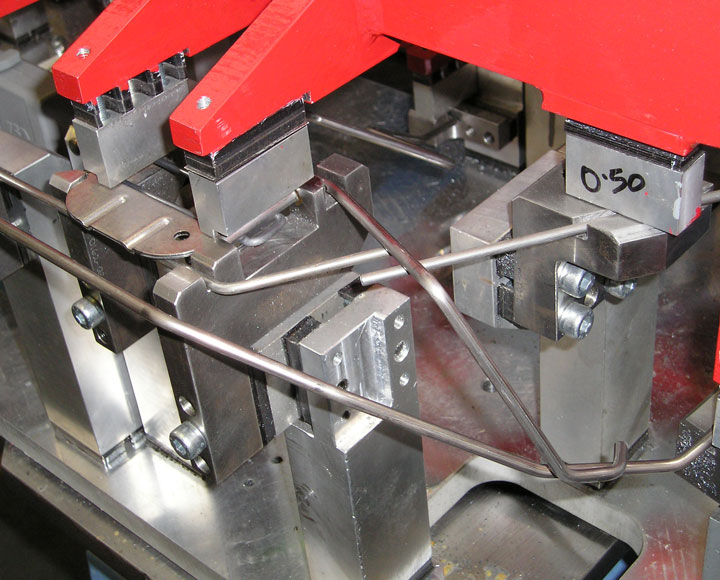

Spot Welding fixtureRover Rear seat frame - Fully automated fixture to weld the support wires and Mounting brackets together, mounted on a 180 degree rotation rotary table, in a robotic welding cell. -

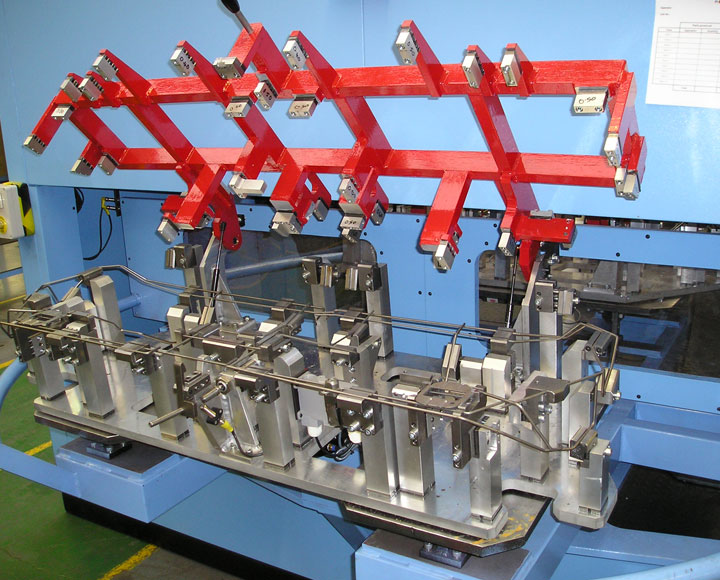

Spot Welding fixtureRover Rear seat frame - Fully automated fixture to weld the support wires and Mounting brackets together, mounted on a 180 degree rotation rotary table, in a robotic welding cell. -

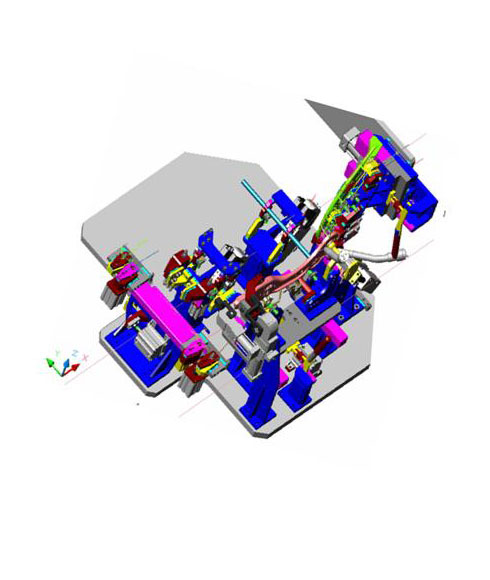

Mig Welding FixtureHonda Front seat frame - Fully automated fixture to Final weld the Main seat frame covering multiple models, in a robotic welding cell. -
Spot Welding fixtureNissan front panel - Fully automated fixture to weld the various components together, in a robotic welding cell.
