CNC Holding Fixtures Gallery
-

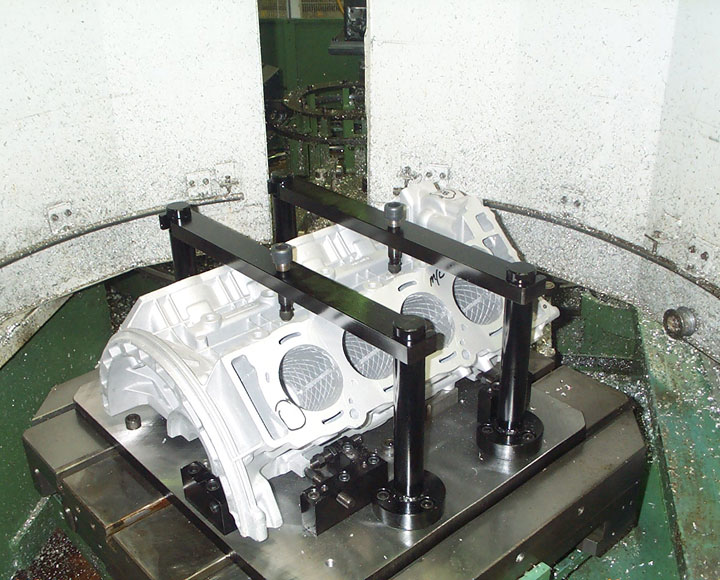

CNC Holding Fixture – V8 Engine Block Casting
Manual fixture to support the Casting for machining the end faces on a Horizontal Multi Pallet machine.
-
CNC Holding Fixture – V8 Engine Block Casting
Manual fixture to support the Casting for machining the end faces on a Horizontal Multi Pallet machine.
-

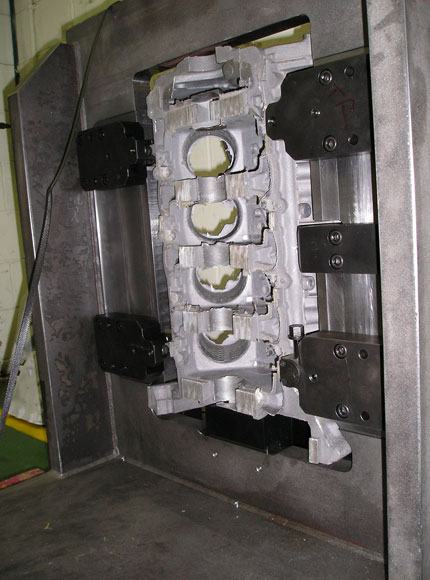

CNC Holding Fixture – V8 Engine Block Casting
Manual fixture to support the Casting for machining the Casting through ‘Frame Tooling’ allowing access to multi faces on a Horizontal Multi Pallet machine.
-

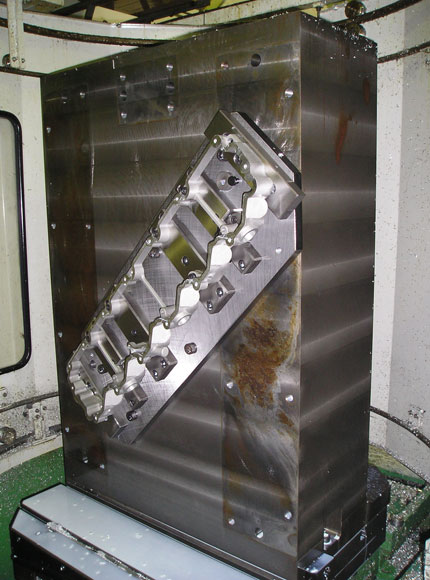

CNC Holding Fixture – Caterpillar Engine Head Casting
Manual fixture to support the Casting for machining the Joint face on a Vertical machine.
-
CNC Holding Fixture – Caterpillar Engine Head Casting
Manual fixture to support the Casting for machining the Joint face on a Vertical machine.
-

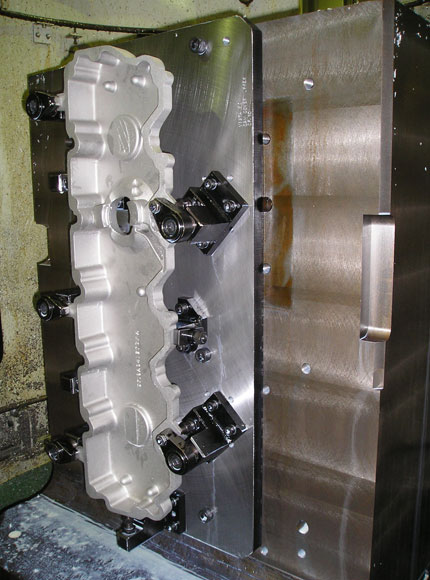

CNC Holding Fixture – Perkins Engine Cam Cover Casting
Manual fixture to support the Casting for machining on a Horizontal Multi Pallet machine.
-
CNC Holding Fixture – Perkins Engine Cam Cover Casting
Manual fixture to support the Casting for machining on a Horizontal Multi Pallet machine.
-

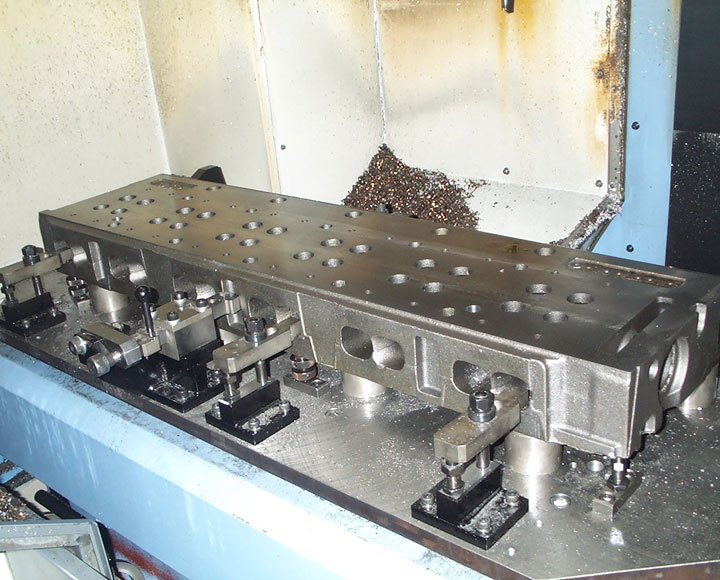

CNC Holding Fixture – Perkins Engine Head Casting
Manual fixture to support the Casting for machining on a Horizontal Multi Pallet machine.
-
CNC Holding Fixture – Perkins Engine Head Casting
Manual fixture to support the Casting for machining on a Horizontal Multi Pallet machine.
