Inspection Fixtures Gallery
-

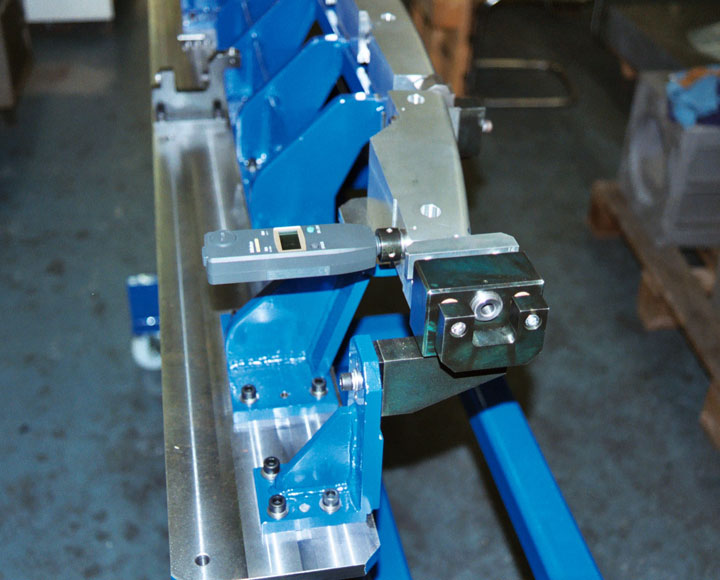

Manual Inspection Fixture – Flush and Gap with Digital Read Outs

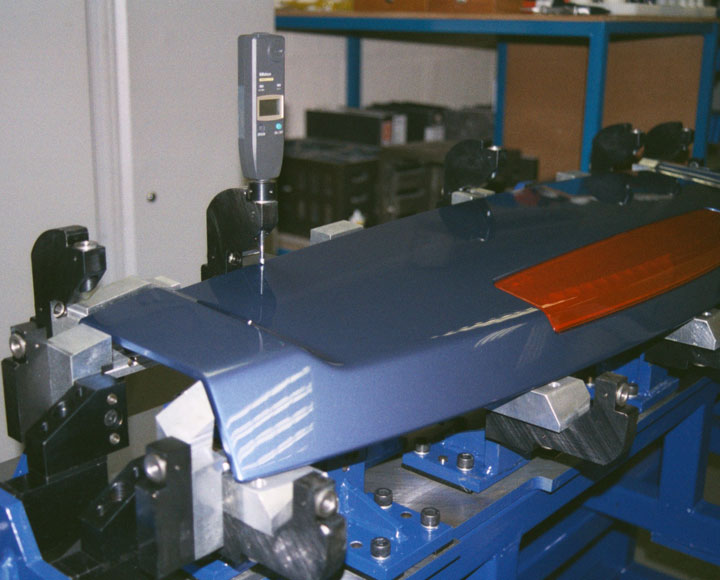

Vauxhall Rear Spoiler – Manual fixture to Dimensionally check the Spoiler, in process during production.
-

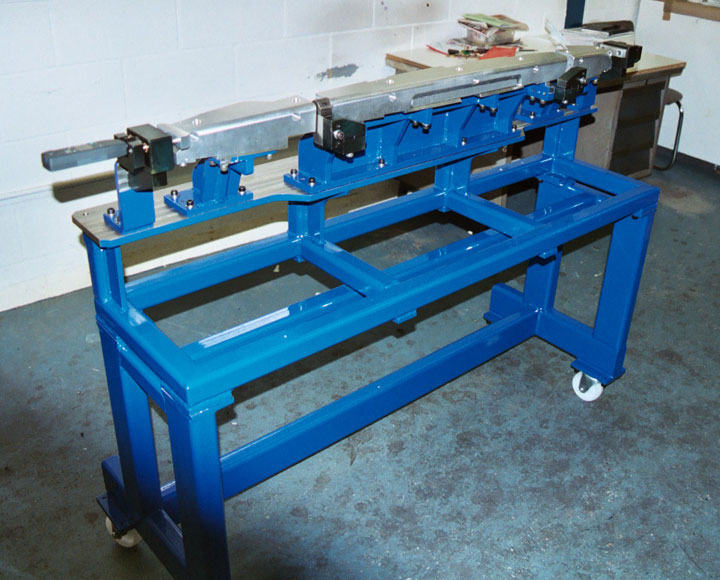

Manual Inspection Fixture – Flush and Gap with Digital Read Outs
Vauxhall Rear Spoiler – Manual fixture to Dimensionally check the Spoiler, in process during production.
-

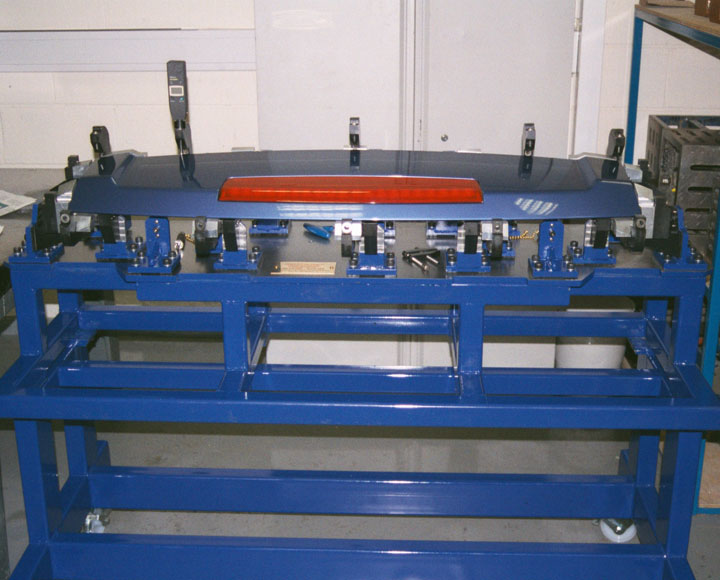

CMM Inspection Fixture –Vauxhall Rear Spoiler

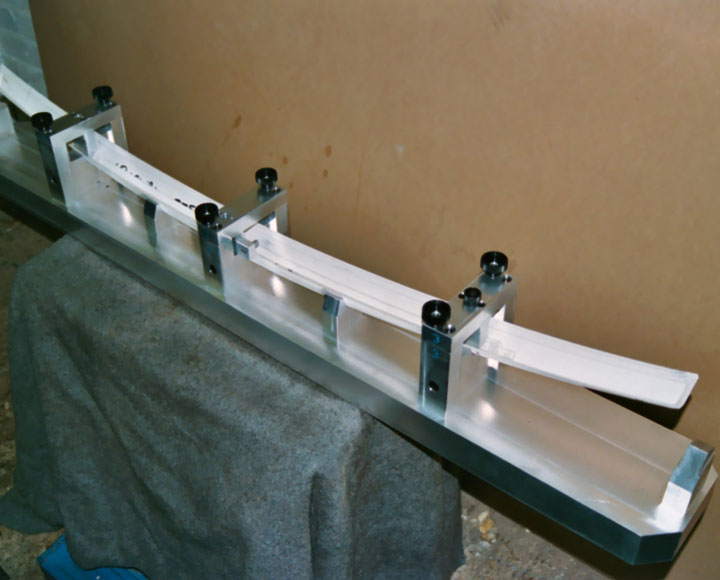

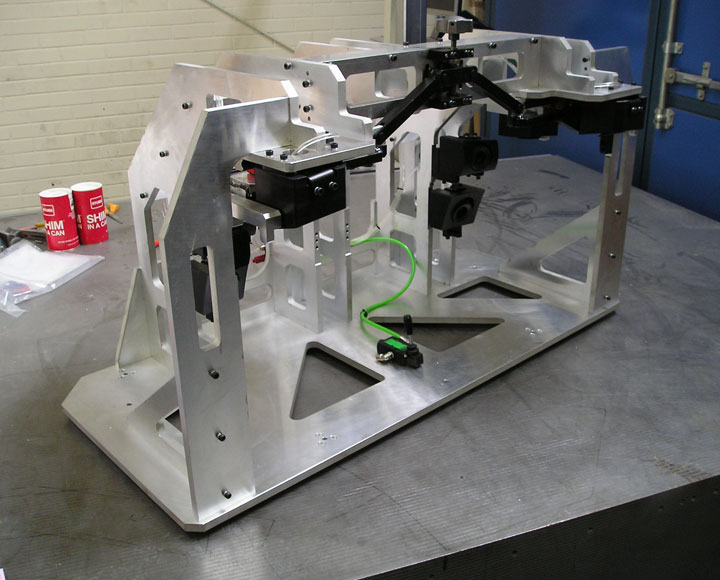

Temporary pre production fixture to dimensionally check the Outer panel pre bonding.
-
CMM Inspection Fixture –Vauxhall Rear Spoiler

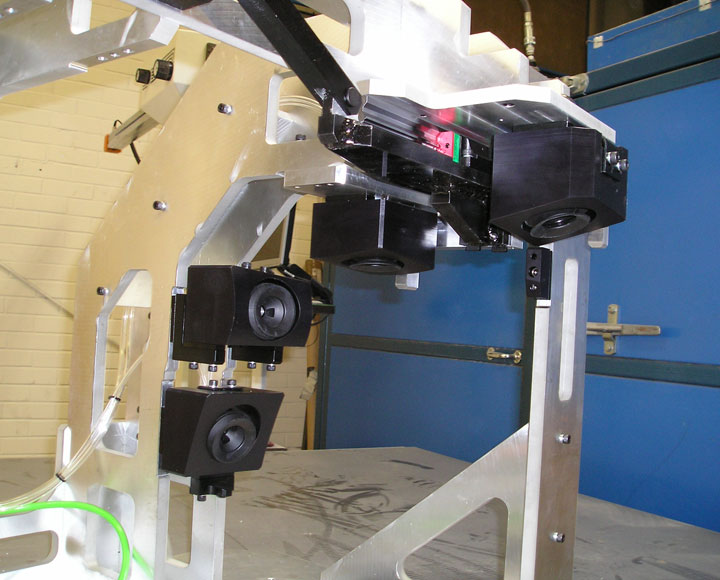

pre production fixture to dimensionally check the Outer panel pre bonding.
-

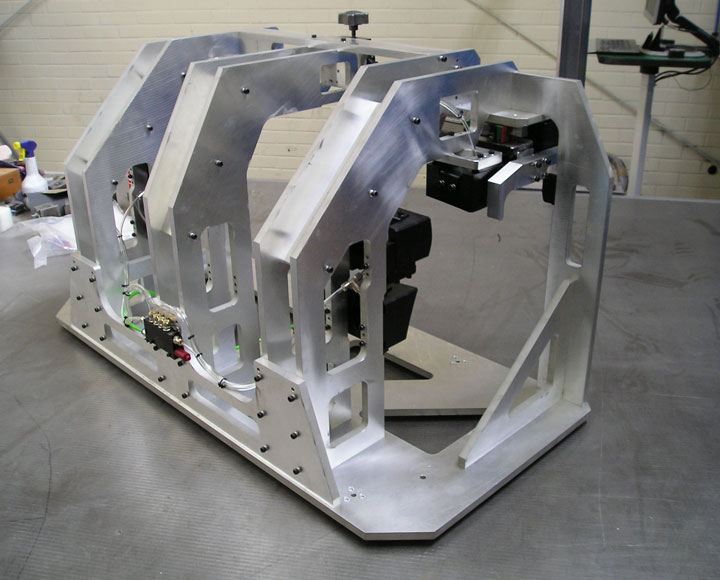

Manual Inspection and CMM Fixture – Flush and Gap with Digital Read Outs

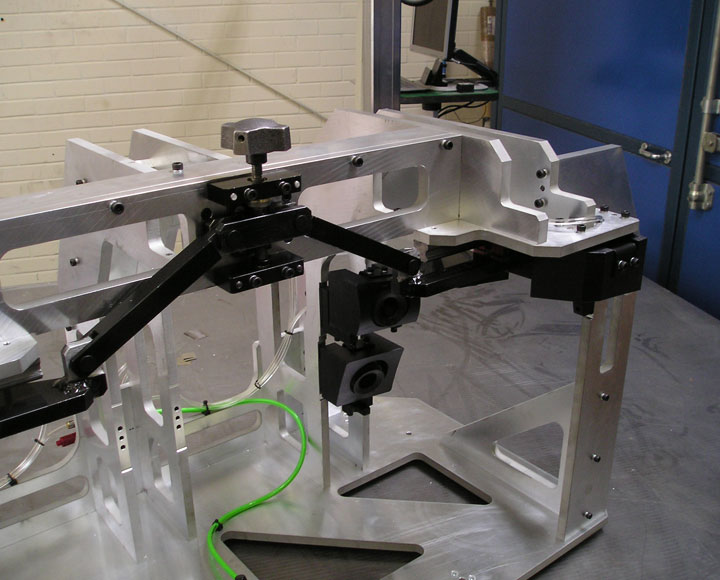

Top half lifts off to work as a CMM fixture when required –Land Rover Rear Spoiler – Manual fixture to Dimensionally check the Spoiler during production or under a CMM (Co-ordinate Measuring Machine).
-
Inspection and CMM Fixture – Flush and Gap with Digital Read Outs

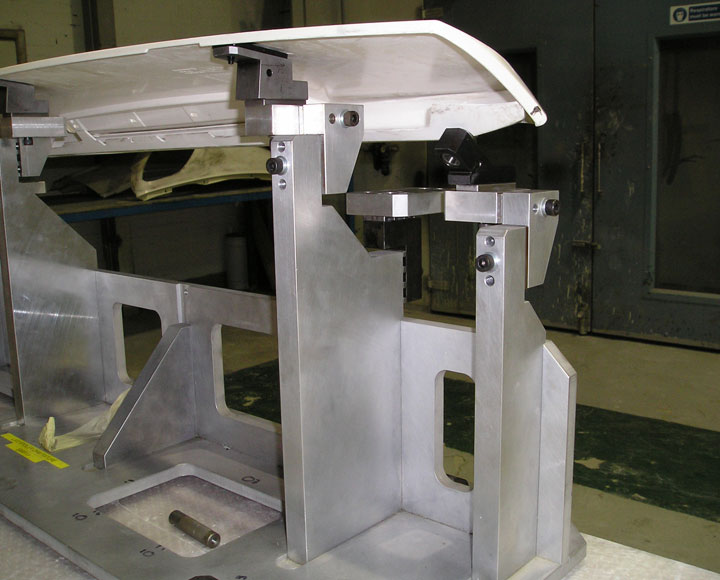

Top half lifts off to work as a CMM fixture when required –Land Rover Rear Spoiler – Manual fixture to Dimensionally check the Spoiler during production or under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture –Aston Martin Rapide Front fender

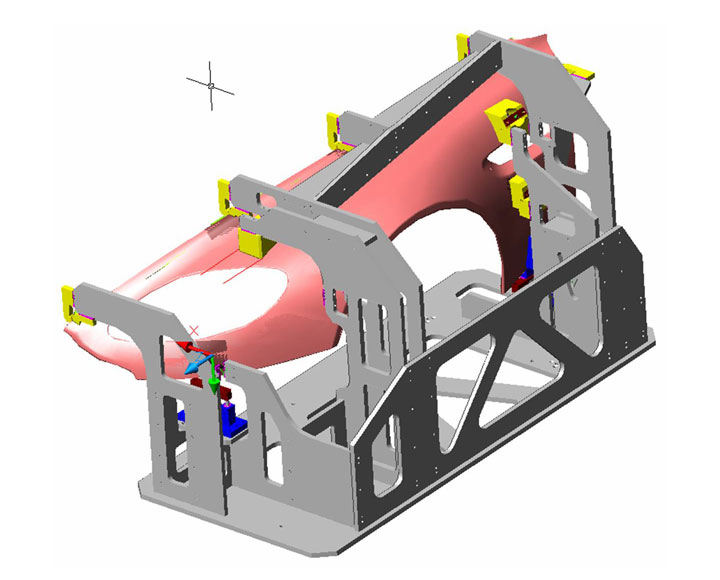

Manual fixture to support the fender under a CMM (Co-ordinate Measuring Machine) Image taken from Inventor 3D model.
-

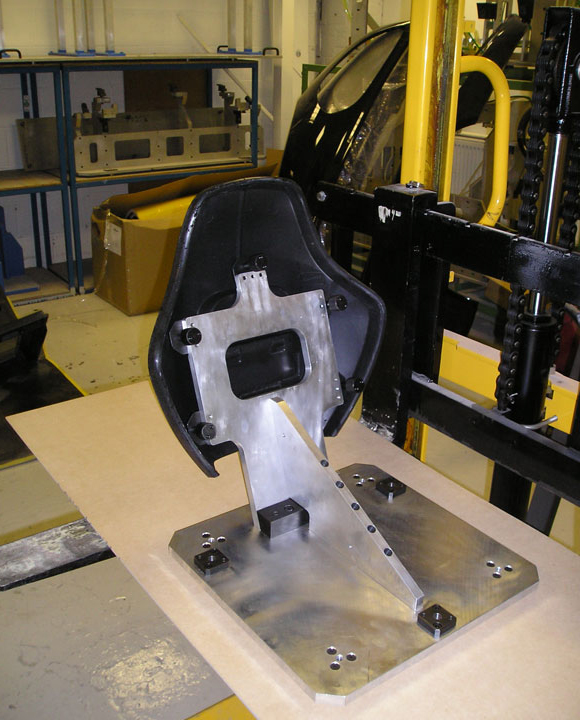

CMM Inspection Fixture –Aston Martin Rapide Rear Seat

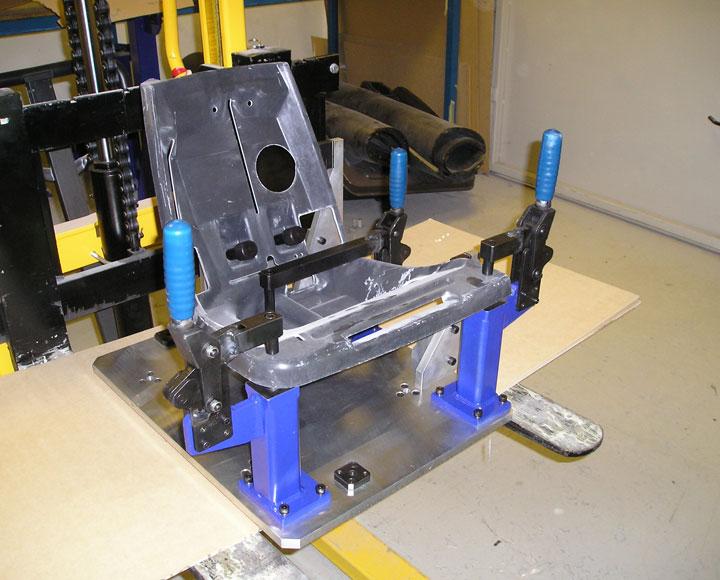

Manual fixture to support the Seat Moulding under a CMM (Co-ordinate Measuring Machine).
-

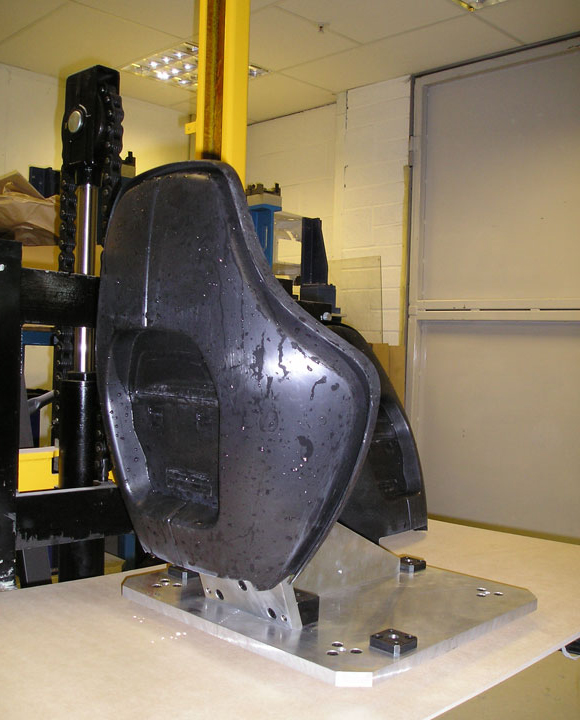

CMM Inspection Fixture – Aston Martin Rapide Rear Seat
Manual fixture to support the Seat Moulding under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture – Aston Martin Rapide Rear Seat
Manual fixture to support the Seat Moulding under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture –Aston Martin Rapide Deck Lid
Manual fixture to support the Deck Lid under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture – Aston Martin Rapide Deck Lid
Manual fixture to support the Deck Lid under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture –Aston Martin Rapide Deck Lid
Manual fixture to support the Deck Lid under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture –Aston Martin Rapide Deck Lid
Manual fixture to support the Deck Lid under a CMM (Co-ordinate Measuring Machine).
-

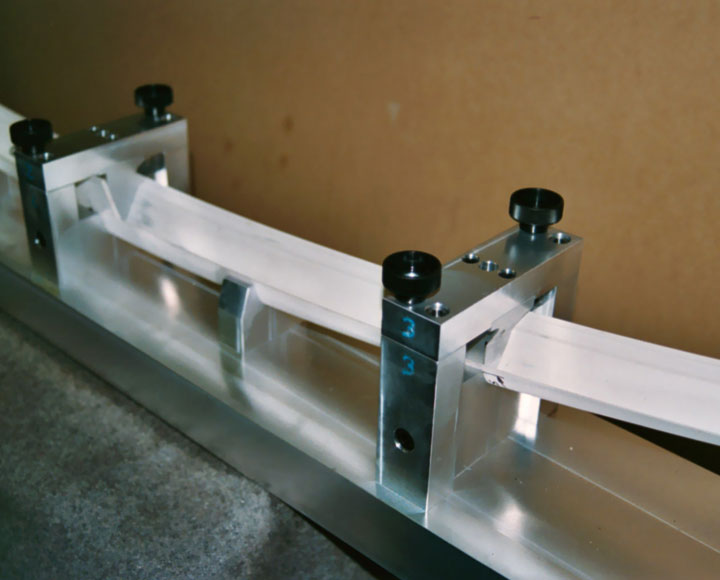

CMM Inspection Fixture –Range Rover Rear Spoiler

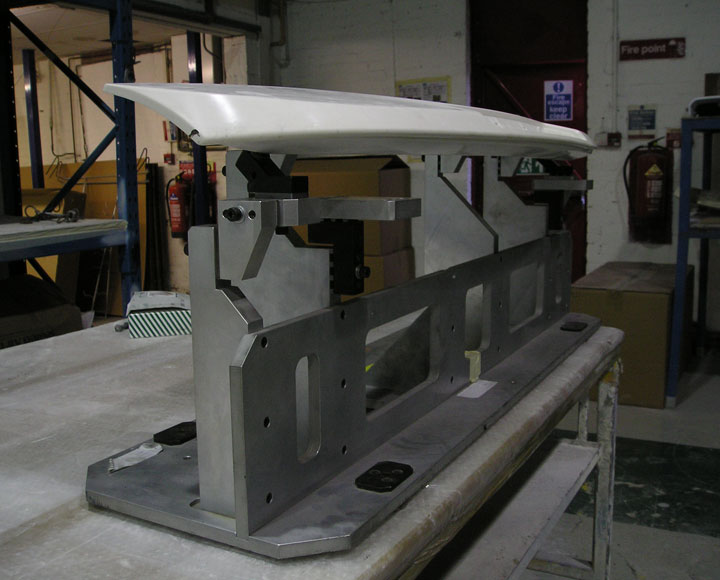

Manual fixture to support the Rear Spoiler under a CMM (Co-ordinate Measuring Machine).
-
CMM Inspection Fixture – Range Rover Rear Spoiler
Manual fixture to support the Rear Spoiler under a CMM (Co-ordinate Measuring Machine) .
